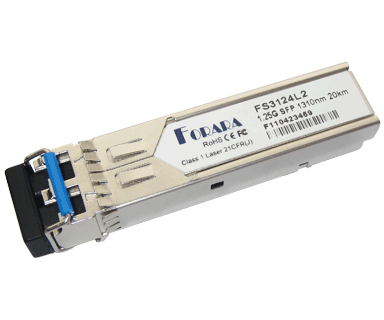

  • 1.25G SFP 1310nm 20km SMF (FS3124L2)

    • 1.25G SFP 1310nm 20km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP footprint
    • Uncooled 1310nm FP transmitter and PIN photo-detector
    • Data rate up to 1.25Gbps
    • Transmission distance of 40km over SMF
    • Low power dissipation
    • Single +3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Support digital diagnostic monitoring functions
    • Compliant with MSA SFP Specification
    • Compliant with SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): -5 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 1.25G 1000Base-EX Ethernet
    • 1.0625G Fibre Channel
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FS3124L2 1.25 20 1310 FP + PIN -5 ~ 70 Yes SMF, RoHS-6
    FS3124L2E 1.25 20 1310 FP + PIN -10 ~ 85 Yes SMF, RoHS-6
    FS3124L2I 1.25 20 1310 FP + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
