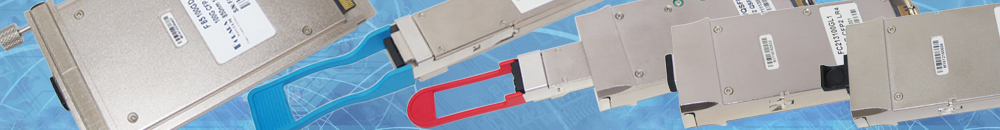

The Forara 100G CFP transceiver modules are designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-SR10, IEEE 802.3ba 100GBASE-LR4 / 100GBASE-ER4. Digital diagnostics functions are available via the MDIO. The transceiver modules are are RoHS-6 compliant and lead-free.
| Part Number |
Description |
| FC85100GD1 |
100G CFP SR10 850nm 100m MMF MPO-24 |
| FC85112GD1 |
100G/112G CFP SR10 850nm 100m MMF MPO-24 |
| FC13100GL1 |
100G CFP LR4 1294-1310nm 10km SMF LC |
| FC13112GL1 |
100G/112G CFP LR4 1294-1310nm 10km SMF LC |
| FC13100GL4 |
100G CFP ER4 1294-1310nm 40km SMF LC |
| FC13112GL4 |
100G/112G CFP ER4 1294-1310nm 40km SMF LC |
| FCCVQSFP |
100G CFP to 100G QSFP28 Adapter |
Notes:
1. Single MPO-24 receptacle for -SR10, duplex LC/PC connector for -LR4, -ER4.
2. Minimum cabling distance is 0.5 meters for -SR10, and 2 meters for -LR4 according to the IEEE 802.3 standard.
3. Links longer than 30 km for the same link power budget are considered engineered links as per IEEE 802.3 Table 87–6. Attenuation for such links needs to be less than the worst case specified for single mode fiber to guarantee operation.
