Part Number |
Data Rate (Gbps) |
Reach (km) |
Wavelength (nm) |
Source | Case Temp. (°C) |
DDM | Connector |
| FSB3524L03 | 1.25 | 3 | Tx1310/Rx1550 | FP + PIN | -5 ~ 70 | Yes | LC |
| FSB3524L03I | 1.25 | 3 | Tx1310/Rx1550 | FP + PIN | -40 ~ 85 | Yes | LC |

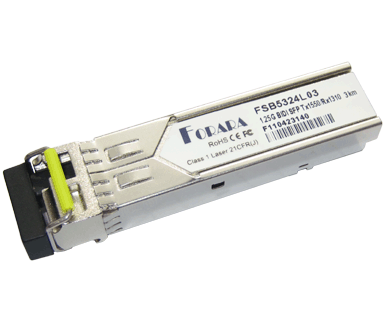

| FSB5324L03 | 1.25 | 3 | Tx1550/Rx1310 | FP + PIN | -5 ~ 70 | Yes | LC |
| FSB5324L03I | 1.25 | 3 | Tx1550/Rx1310 | FP + PIN | -40 ~ 85 | Yes | LC |
| FSB3524S03 | 1.25 | 3 | Tx1310/Rx1550 | FP + PIN | -5 ~ 70 | Yes | SC |
| FSB3524S03I | 1.25 | 3 | Tx1310/Rx1550 | FP + PIN | -40 ~ 85 | Yes | SC |
| FSB5324S03 | 1.25 | 3 | Tx1550/Rx1310 | FP + PIN | -5 ~ 70 | Yes | SC |
| FSB5324S03I | 1.25 | 3 | Tx1550/Rx1310 | FP + PIN | -40 ~ 85 | Yes | SC |
| FSB3424L03 | 1.25 | 3 | Tx1310/Rx1490 | FP + PIN | -5 ~ 70 | Yes | LC |
| FSB3424L03I | 1.25 | 3 | Tx1310/Rx1490 | FP + PIN | -40 ~ 85 | Yes | LC |
| FSB4324L03 | 1.25 | 3 | Tx1490/Rx1310 | FP + PIN | -5 ~ 70 | Yes | LC |
| FSB4324L03I | 1.25 | 3 | Tx1490/Rx1310 | FP + PIN | -40 ~ 85 | Yes | LC |
| FSB3424S03 | 1.25 | 3 | Tx1310/Rx1490 | FP + PIN | -5 ~ 70 | Yes | SC |
| FSB3424S03I | 1.25 | 3 | Tx1310/Rx1490 | FP + PIN | -40 ~ 85 | Yes | SC |
| FSB4324S03 | 1.25 | 3 | Tx1490/Rx1310 | FP + PIN | -5 ~ 70 | Yes | SC |
| FSB4324S03I | 1.25 | 3 | Tx1490/Rx1310 | FP + PIN | -40 ~ 85 | Yes | SC |
