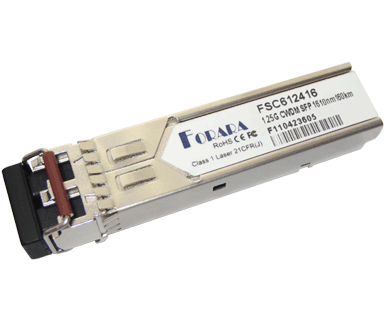

1.25G CWDM SFP 160km SMF (FSCXX2416)
- Features
• Hot-pluggable SFP footprint
• Uncooled CWDM DFB transmitter and APD photo-detector
• 8 wavelengths from 1470nm to 1610nm with step 20nm
• Data rate up to 1.25Gbps
• Transmission distance of 160km over SMF
• Low power dissipation
• Single +3.3V power supply
• Metal enclosure for lower EMI
• Duplex LC receptacle
• Support digital diagnostic monitoring functions
• Compliant with MSA SFP Specification
• Compliant with SFF-8472
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): -5 to 70°C
Extended temperature range (EXT): -10 to 85°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 1.25G 1000Base-ZX Ethernet
• 1.0625G Fibre Channel
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FSCXX2416 |
1.25 |
160 |
1470 ~ 1610 |
DFB + APD |
-5 ~ 70 |
Yes |
SMF, RoHS-6 |
| FSCXX2416E |
1.25 |
160 |
1470 ~ 1610 |
DFB + APD |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FSCXX2416I |
1.25 |
160 |
1470 ~ 1610 |
DFB + APD |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
2. Please contact with Forara for specific wavelength availability.
