  • 1.25G DWDM SFP 120km SMF (FSDXX2412)

    • 1.25G DWDM SFP 120km SMF

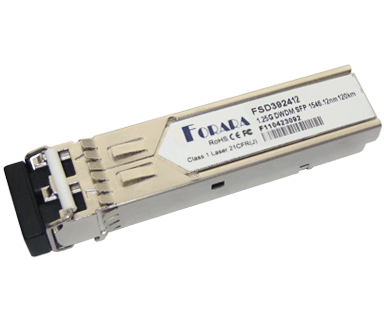

    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP footprint
    • DWDM DFB transmitter and APD photo-detector
    • 100GHz ITU Grid, C-Band
    • Data rate up to 1.25Gbps
    • Transmission distance of 120km over SMF
    • Low power dissipation
    • Single +3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Support digital diagnostic monitoring functions
    • Compliant with MSA SFP Specification
    • Compliant with SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): -5 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • Gigabit Ethernet
    • 1.0625G Fibre Channel
    • Amplified DWDM networks
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FSDXX2412 1.25 120 C-Band DFB + APD -5 ~ 70 Yes SMF, RoHS-6
    FSDXX2412E 1.25 120 C-Band DFB + APD -10 ~ 85 Yes SMF, RoHS-6
    FSDXX2412I 1.25 120 C-Band DFB + APD -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    1. XX is 100GHz ITU Channel ID, detail as following table:
    2. Please contact with Forara for specific wavelength availability.
    Channel ID
    XX    		 Frequency
    (THz)    		 Wavelength
    (nm)    		 Channel ID
    XX    		 Frequency
    (THz)    		 Wavelength
    (nm)
    16 191.60 1564.68 39 193.90 1546.12
    17 191.70 1563.86 40 194.00 1545.32
    18 191.80 1563.05 41 194.10 1544.53
    19 191.90 1562.23 42 194.20 1543.73
    20 192.00 1561.42 43 194.30 1542.94
    21 192.10 1560.61 44 194.40 1542.14
    22 192.20 1559.79 45 194.50 1541.35
    23 192.30 1558.98 46 194.60 1540.56
    24 192.40 1558.17 47 194.70 1539.77
    25 192.50 1557.36 48 194.80 1538.98
    26 192.60 1556.55 49 194.90 1538.19
    27 192.70 1555.75 50 195.00 1537.40
    28 192.80 1554.94 51 195.10 1536.61
    29 192.90 1554.13 52 195.20 1535.82
    30 193.00 1553.33 53 195.30 1535.04
    31 193.10 1552.52 54 195.40 1534.25
    32 193.20 1551.72 55 195.50 1533.47
    33 193.30 1550.92 56 195.60 1532.68
    34 193.40 1550.12 57 195.70 1531.90
    35 193.50 1549.32 58 195.80 1531.12
    36 193.60 1548.51 59 195.90 1530.33
    37 193.70 1547.72 60 196.00 1529.55
    38 193.80 1546.92 61 196.10 1528.77
