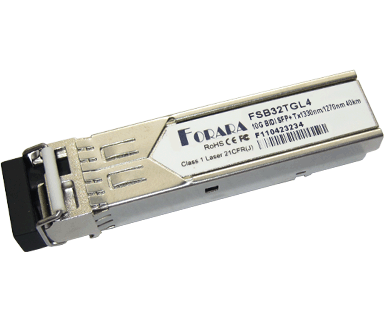

10G BIDI SFP+ 40km Tx1330/Rx1270nm

Products

Quick Download

Features
• Hot-pluggable SFP+ footprint
• Uncooled 1330nm DFB Transmitter and 1270nm PIN Receiver
• Supports 9.95 to 10.5 Gbps bit rates
• Transmission distance of 40km over 9/125um SMF
• Power consumption < 1.5W
• Single 3.3V power supply
• Metal enclosure for lower EMI
• Simplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with SFP+ MSA specification SFF-8431
• Compliant with IEEE 802.3ae
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C

Applications
• 10GBASE-ER at 10.3125Gbps
• 10GBASE-EW at 9.953Gbps
• 1000BASE-EX Ethernet
• Other Optical Links

Product Details

Notes:
For further information, please contact us by email via sales@forara.com.

10G BIDI SFP+ 40km Tx1330/Rx1270nm SMF (FSB32TGL4)
