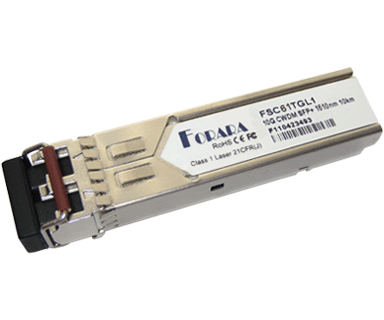

10G CWDM SFP+ 1270-1450nm 20km SMF (FSCXXTGL2)
- Features
• Hot-pluggable SFP+ footprint
• Uncooled CWDM DFB transmitter and PIN photo-detector
• 10 wavelengths from 1270nm to 1450nm with step 20nm
• Data rate up to 11.1Gbps
• Transmission distance of 20km over 9/125um SMF
• Power consumption < 1.0W
• Single 3.3V power supply
• Metal enclosure for lower EMI
• Duplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with SFP+ MSA specification SFF-8431
• Compliant with IEEE 802.3ae
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 10GBASE-LR at 10.3125Gbps
• 10GBASE-LW at 9.953Gbps
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FSCXXTGL2 |
10 |
20 |
1270 ~ 1450 |
DFB + PIN |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
| FSCXXTGL2E |
10 |
20 |
1270 ~ 1450 |
DFB + PIN |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FSCXXTGL2I |
10 |
20 |
1270 ~ 1450 |
DFB + PIN |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
2. Please contact with Forara for specific wavelength availability.
