  • 10G DWDM SFP+ LR 20km SMF (FSDXXTGL2)

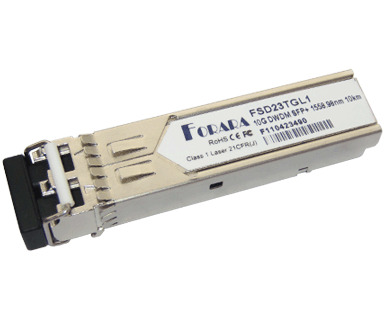

    • 10G DWDM SFP+ LR 20km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP+ footprint
    • Uncooled DWDM DFB transmitter and PIN photo-detector
    • 100GHz ITU Grid, C-Band
    • Data rate up to 11.1Gbps
    • Transmission distance of 20km over 9/125um SMF
    • Power consumption < 1.0W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • DWDM 10GBASE-LR/LW
    • DWDM 10GBASE-LR/LW + FEC
    • DWDM 10G Fiber Channel
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FSDXXTGL2 10 20 C-Band DFB + PIN 0 ~ 70 Yes SMF, RoHS-6
    FSDXXTGL2E 10 20 C-Band DFB + PIN -10 ~ 85 Yes SMF, RoHS-6
    FSDXXTGL2I 10 20 C-Band DFB + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    1. XX is 100GHz ITU Channel ID, detail as following table:
    2. Please contact with Forara for specific wavelength availability.
    Channel ID
    XX    		 Frequency
    (THz)    		 Wavelength
    (nm)    		 Channel ID
    XX    		 Frequency
    (THz)    		 Wavelength
    (nm)
    16 191.60 1564.68 39 193.90 1546.12
    17 191.70 1563.86 40 194.00 1545.32
    18 191.80 1563.05 41 194.10 1544.53
    19 191.90 1562.23 42 194.20 1543.73
    20 192.00 1561.42 43 194.30 1542.94
    21 192.10 1560.61 44 194.40 1542.14
    22 192.20 1559.79 45 194.50 1541.35
    23 192.30 1558.98 46 194.60 1540.56
    24 192.40 1558.17 47 194.70 1539.77
    25 192.50 1557.36 48 194.80 1538.98
    26 192.60 1556.55 49 194.90 1538.19
    27 192.70 1555.75 50 195.00 1537.40
    28 192.80 1554.94 51 195.10 1536.61
    29 192.90 1554.13 52 195.20 1535.82
    30 193.00 1553.33 53 195.30 1535.04
    31 193.10 1552.52 54 195.40 1534.25
    32 193.20 1551.72 55 195.50 1533.47
    33 193.30 1550.92 56 195.60 1532.68
    34 193.40 1550.12 57 195.70 1531.90
    35 193.50 1549.32 58 195.80 1531.12
    36 193.60 1548.51 59 195.90 1530.33
    37 193.70 1547.72 60 196.00 1529.55
    38 193.80 1546.92 61 196.10 1528.77
