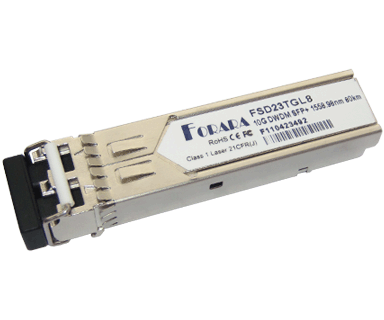

  • 10G DWDM SFP+ ZR 80km SMF (FSDXXTGL8)

    • 10G DWDM SFP+ ZR 80km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP+ footprint
    • Temperature-stabilized DWDM EML transmitter and APD photo-detector
    • 100GHz ITU Grid, C-Band
    • Data rate up to 11.1Gbps
    • Transmission distance of 80km over 9/125um SMF
    • Power consumption < 1.5W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • DWDM 10GBASE-ZR/ZW
    • DWDM 10GBASE-ZR/ZW + FEC
    • DWDM 10G Fiber Channel
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FSDXXTGL8 10 80 C-Band EML + APD 0 ~ 70 Yes SMF, RoHS-6
    FSDXXTGL8E 10 80 C-Band EML + APD -10 ~ 85 Yes SMF, RoHS-6
    FSDXXTGL8I 10 80 C-Band EML + APD -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    1. XX is 100GHz ITU Channel ID, detail as following table:
    2. Please contact with Forara for specific wavelength availability.
    Channel ID
    XX    		 Frequency
    (THz)    		 Wavelength
    (nm)    		 Channel ID
    XX    		 Frequency
    (THz)    		 Wavelength
    (nm)
    16 191.60 1564.68 39 193.90 1546.12
    17 191.70 1563.86 40 194.00 1545.32
    18 191.80 1563.05 41 194.10 1544.53
    19 191.90 1562.23 42 194.20 1543.73
    20 192.00 1561.42 43 194.30 1542.94
    21 192.10 1560.61 44 194.40 1542.14
    22 192.20 1559.79 45 194.50 1541.35
    23 192.30 1558.98 46 194.60 1540.56
    24 192.40 1558.17 47 194.70 1539.77
    25 192.50 1557.36 48 194.80 1538.98
    26 192.60 1556.55 49 194.90 1538.19
    27 192.70 1555.75 50 195.00 1537.40
    28 192.80 1554.94 51 195.10 1536.61
    29 192.90 1554.13 52 195.20 1535.82
    30 193.00 1553.33 53 195.30 1535.04
    31 193.10 1552.52 54 195.40 1534.25
    32 193.20 1551.72 55 195.50 1533.47
    33 193.30 1550.92 56 195.60 1532.68
    34 193.40 1550.12 57 195.70 1531.90
    35 193.50 1549.32 58 195.80 1531.12
    36 193.60 1548.51 59 195.90 1530.33
    37 193.70 1547.72 60 196.00 1529.55
    38 193.80 1546.92 61 196.10 1528.77
