Home > Products > SFP28 / SFP+ > 10G SFP+ > FS31TGD2

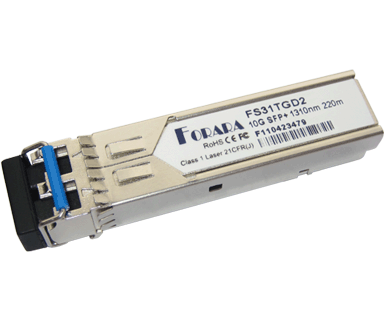

  • 10G SFP+ LRM 1310nm 220m MMF (FS31TGD2)

    • 10G SFP+ LRM 1310nm 220m MMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP+ footprint
    • Uncooled 1310nm FP transmitter and PIN photo-detector
    • Supports 9.95 to 10.5 Gbps bit rates
    • Transmission distance of 220m over MMF
    • Power consumption < 1.0W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-LRM 10G Ethernet
    • Legacy FDDI multimode links
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (m)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FS31TGD2 10 220 1310 FP + PIN 0 ~ 70 Yes MMF, RoHS-6
    FS31TGD2E 10 220 1310 FP + PIN -10 ~ 85 Yes MMF, RoHS-6
    FS31TGD2I 10 220 1310 FP + PIN -40 ~ 85 Yes MMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
