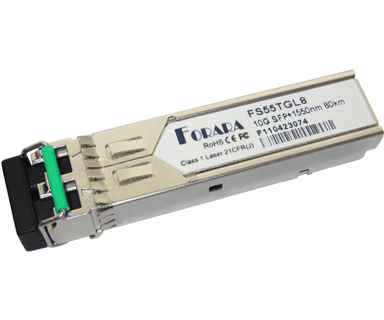

  • 10G SFP+ ZR 1550nm 80km SMF (FS55TGL8)

    • 10G SFP+ ZR 1550nm 80km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP+ footprint
    • Temperature-stabilized 1550nm EML transmitter and APD photo-detector
    • Supports 9.95 to 10.5 Gbps bit rates
    • Transmission distance of 80km over 9/125um SMF
    • Power consumption < 1.5W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with IEEE 802.3ae
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 10GBASE-ZR at 10.3125Gbps
    • 10GBASE-ZW at 9.953Gbps
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FS55TGL8 10 80 1550 EML + APD 0 ~ 70 Yes SMF, RoHS-6
    FS55TGL8E 10 80 1550 EML + APD -10 ~ 85 Yes SMF, RoHS-6
    FS55TGL8I 10 80 1550 EML + APD -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
