Features

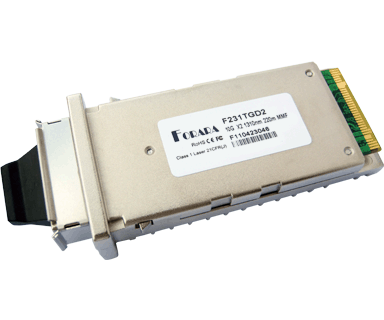

• Hot pluggable X2 MSA form factor
• Uncooled 1310nm FP laser transmitter and PIN photo-detector
• Transmission distance of 220m over MMF
• XAUI electrical interface 4x 3.125 Gbps Ethernet
• Management and control via MDIO 2-wire bus
• Power consumption < 3.0W
• Power supply: +5.0 V, +3.3 V
• Adaptable Power Supply (APS: +1.2 V)
• 70-pin connector
• SC connector and full duplex transmission mode
• Built-in digital diagnostic functions
• Compliant with IEEE 802.3ae
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Extended temperature range (EXT): -10 to 85°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 10G Ethernet transmission on legacy multimode fiber
• Other Optical Links
