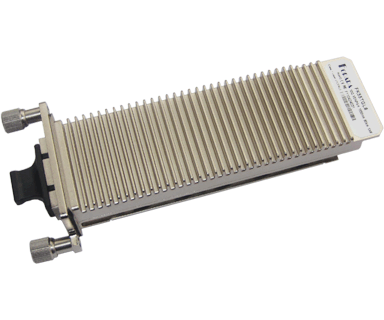

10G CWDM XENPAK 40km SMF (FKCXXTGL4)
- Features
• Hot pluggable XENPAK MSA form factor
• Temperature-stabilized CWDM EML transmitter and PIN photo-detector
• 8 wavelengths from 1470nm to 1610nm with step 20nm
• Transmission distance of 40km over SMF
• XAUI electrical interface 4x 3.125 Gbps Ethernet
• Management and control via MDIO 2-wire bus
• Power consumption < 4.0W
• Power supply: +5.0 V, +3.3 V
• Adaptable Power Supply (APS: +1.2 V)
• 70-pin connector
• SC connector and full duplex transmission mode
• Built-in digital diagnostic functions
• Compliant with IEEE 802.3ae
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Extended temperature range (EXT): -10 to 85°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 10GBASE-ER 10G Ethernet
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FKCXXTGL4 |
10 |
80 |
1470 ~ 1610 |
EML + APD |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
2. Please contact with Forara for specific wavelength availability.
