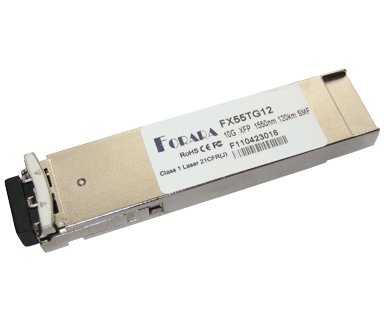

10G XFP ZR 1550nm 120km SMF (FX55TG12)
- Features
• Hot-pluggable XFP footprint
• Temperature-stabilized 1550nm EML transmitter and APD photo-detector
• Supports 9.95Gbps to 11.1Gbps bit rates
• Integrated dual CDR with Electronic Dispersion Compensation (EDC)
• Transmission distance up to 120km (with EDFA) over 9/125um SMF
• 2400ps/nm Dispersion Tolerance
• Reference clock options
• Power consumption < 3.5W
• Power supply: +1.8V,+3.3V,+5V
• Supports XFI and Lineside loopback
• Duplex LC receptacle
• Built-in digital diagnostic functions
• Compliant with XFP MSA
• Compliant with IEEE 802.3ae
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Extended temperature range (EXT): -10 to 85°C
Applications
• 10GBASE-ZR/ZW 10G Ethernet (with/without FEC)
• SONET OC-192 / SDH STM-64 (with/without FEC)
• 10G Fiber Channel
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FX55TG12 |
10 |
120 |
1550 |
EML + APD |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
| FX55TG12E |
10 |
120 |
1550 |
EML + APD |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FX55TG12I |
10 |
120 |
1550 |
EML + APD |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1) If the host board provides reference clock, Baud-rate = RefClock x 64
2) If the host board does not provide reference clock, a crystal oscillator must be installed inside the module. The crystal oscillator frequency is exactly 1/64 of the Baud-rate, and customer must specify your host board Baud-rate.
