10G BIDI XFP 40km Tx1330/Rx1270nm

Products

Quick Download

Features
• Hot-pluggable XFP footprint
• Uncooled 1330nm DFB Transmitter and 1270nm PIN Receiver
• Supports 9.95Gbps to 11.3Gbps bit rates
• Transmission distance of 40km over 9/125um SMF
• Power consumption < 2.0W
• Power supply: +1.8V,+3.3V
• Supports XFI and Lineside loopback
• No reference clock required
• Metal enclosure for lower EMI
• Simplex LC receptacle
• Built-in digital diagnostic functions
• Compliant with XFP MSA
• Compliant with IEEE 802.3ae
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C

Applications
• 10GBASE-ER at 10.3125Gbps
• 10GBASE-EW at 9.953Gbps
• 1200-SM-LL-L 10G Fiber Channel
• SONET OC-192 / SDH STM-64
• Other Optical Links

Product Details

Notes:
For further information, please contact us by email via sales@forara.com.

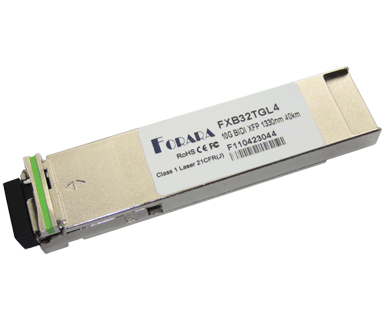

10G BIDI XFP 40km Tx1330/Rx1270nm SMF (FXB32TGL4)
