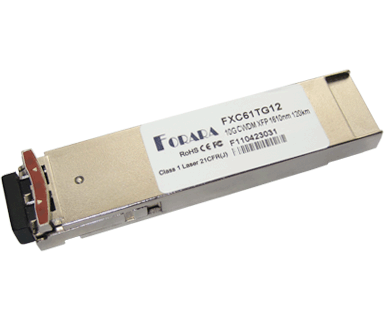

10G CWDM XFP 1470-1610nm 120km (FXCXXTG12)
- Features
• Hot-pluggable XFP footprint
• Temperature-stabilized CWDM EML transmitter
• APD receiver integrated dual CDR with Electronic Dispersion Compensation (EDC)
• 8 wavelengths from 1470nm to 1610nm with step 20nm
• Supports 9.95Gbps to 11.3Gbps bit rates
• Transmission distance of 120km (with EDFA) over 9/125um SMF
• Power consumption < 3.5W
• Power supply: +1.8 V, +3.3 V, +5.0 V
• XFI and line side Loopback Mode
• No reference clock required
• Duplex LC receptacle
• Built-in digital diagnostic functions
• Compliant with XFP MSA
• Compliant with IEEE 802.3ae
• Compliant with 1200-SM-LL-L
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Extended temperature range (EXT): -10 to 85°C
Applications
• 10GBASE-ZR/ZW 10G Ethernet (with/without FEC)
• SONET OC-192 / SDH STM-64 (with/without FEC)
• 10G Fiber Channel
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FXCXXTG12 |
10 |
120 |
1470 ~ 1610 |
EML + APD |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
| FXCXXTG12E |
10 |
120 |
1470 ~ 1610 |
EML + APD |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FXCXXTG12I |
10 |
120 |
1470 ~ 1610 |
EML + APD |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1610nm
2. Please contact with Forara for specific wavelength availability.
