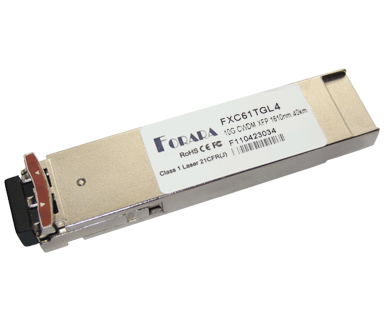

10G CWDM XFP ER 1270-1450nm 40km (FXCXXTGL4)
- Features
• Hot-pluggable XFP footprint
• Uncooled CWDM DFB transmitter and APD photo-detector
• 10 wavelengths from 1270nm to 1450nm with step 20nm
• Supports 9.95Gbps to 11.3Gbps bit rates
• Transmission distance of 40km over 9/125um SMF
• Power consumption < 3.5W
• Power supply: +1.8V,+3.3V
• Supports XFI and Lineside loopback
• No reference clock required
• Duplex LC receptacle
• Built-in digital diagnostic functions
• Compliant with XFP MSA
• Compliant with IEEE 802.3ae
• Compliant with 1200-SM-LL-L
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 10GBASE-ER/EW 10G Ethernet
• 1200-SM-LL-L 10G Fiber Channel
• SONET OC-192 / SDH STM-64
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FXCXXTGL4 |
10 |
40 |
1270 ~ 1450 |
DFB + APD |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
| FXCXXTGL4E |
10 |
40 |
1270 ~ 1450 |
DFB + APD |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FXCXXTGL4I |
10 |
40 |
1270 ~ 1450 |
DFB + APD |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1270nm, 29=1290nm, 31=1310nm...61=1450nm
2. Please contact with Forara for specific wavelength availability.
