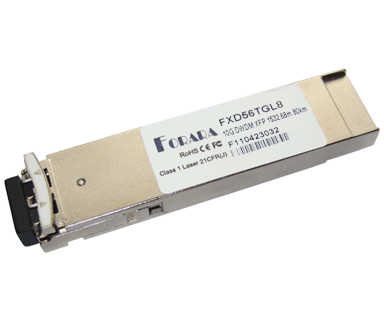

10G DWDM XFP ZR 80km (FXDXXTGL8)
- Features
• Hot-pluggable XFP footprint
• Temperature-stabilized DWDM EML transmitter and APD photo-detector
• 100GHz ITU Grid, C-Band
• Supports 9.95Gbps to 11.3Gbps bit rates
• Transmission distance of 80km over 9/125um SMF
• Power consumption < 3.5W
• AC/AC Coupling according to MSA
• Power supply: +3.3 V, +5.0 V
• XFI and Line side Loopback Mode
• No reference clock required
• Duplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with XFP MSA
• Compliant with IEEE 802.3ae
• Compliant with 1200-SM-LL-L
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 10GBASE-ZR/ZW 10G Ethernet
• 1200-SM-LL-L 10G Fiber Channel
• SONET OC-192 / SDH STM-64
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FXDXXTGL8 |
10 |
80 |
C-Band |
EML + APD |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
| FXDXXTGL8E |
10 |
80 |
C-Band |
EML + APD |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FXDXXTGL8I |
10 |
80 |
C-Band |
EML + APD |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX is 100GHz ITU Channel ID, XX=17, 18, 19...61, which 17=1563.86nm, 18=1563.05nm, 19=1562.23nm ... 61=1528.77nm
2. Please contact with Forara for specific wavelength availability.
