Features

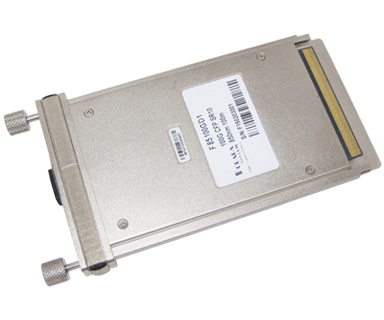

• Hot pluggable CFP form factor
• Supports 103.1Gbps to 112Gbps aggregate bit rates
• Transmission distance of 40km on SMF
• 4x28Gbps EML-based LAN-WDM transmitter (1295.56, 1300.05, 1304.58, 1309.14nm)
• APD photo-detector
• Power Consumption < 16.0W typical
• Single 3.3V power supply
• CAUI high speed electrical interface
• Duplex SC or LC receptacles (straight or angled for option)
• MDIO interface with integrated Digital Diagnostic Monitoring
• Compliant with 100G Ethernet IEEE802.3ba
• Compliant with OTU4
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
