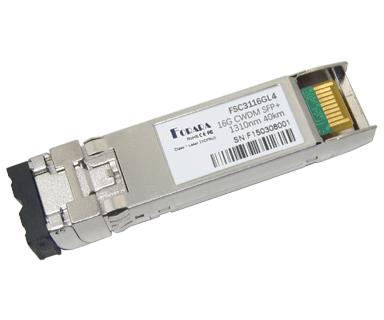

16G CWDM SFP+ 40km SMF (FSCXX16GL4)
- Features
• Hot-pluggable SFP+ footprint
• CWDM EML transmitter and PIN receiver
• 8 wavelengths from 1470nm to 1610nm with step 20nm
• Data rate up to 14.025 Gbps
• Transmission distance of 40km on 9/125um SMF
• Build-in Dual CDR at 14.025Gbps and bypass at 4.25Gbps and 8.5Gbps
• Power consumption < 1.5W
• Single 3.3V power supply
• Metal enclosure for lower EMI
• Duplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with SFP+ MSA specification SFF-8431 and SFF-8472
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C
Applications
• Tri Rate 4.25 / 8.5 / 14.025Gbps Fiber Channel through Rate Select
• 10GBASE-ER/EW 10G Ethernet
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DOM |
Others |
| FSCXX16GL4 |
16 |
40 |
1470 ~ 1610 |
EML + PIN |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1470nm, 29=1290nm, 31=1310nm...61=1610nm
2. Please contact with Forara for specific wavelength availability.
