Features

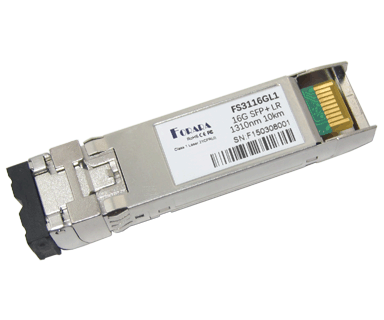

• Hot-pluggable SFP+ footprint
• Uncooled 1310nm DFB transmitter and PIN photo-detector
• Data rate up to 14.025 Gbps
• Transmission distance of 10km on 9/125um SMF
• Power consumption < 1.0W
• Single 3.3V power supply
• Metal enclosure for lower EMI
• Build-in Dual CDR at 14.025Gbps and bypass at 4.25Gbps and 8.5Gbps
• Duplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with SFP+ MSA specification SFF-8431 and SFF-8432
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C
Applications
• Tri Rate 4.25 / 8.5 / 14.025Gbps Fiber Channel through Rate Select
• 10GBASE-LR/LW 10G Ethernet
• Other Optical Links
