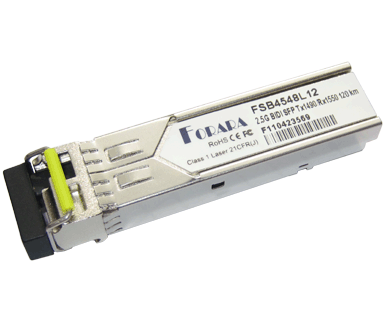

  • 2.5G BIDI SFP 120km SMF (FSBXX48X12)

    • 2.5G BIDI SFP 120km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP footprint
      A type: 1490nm DFB TX / 1550nm APD RX
      B type: 1550nm DFB TX / 1490nm APD RX
    • Data rate up to 2.5Gbps
    • Transmission distance of 120km over SMF
    • Low power dissipation
    • Single +3.3V power supply
    • Metal enclosure for lower EMI
    • Simplex LC or SC optical receptacle
    • Support digital diagnostic monitoring functions
    • Compliant with MSA SFP Specification
    • Compliant with SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): -5 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 2x / 1x Fibre Channel
    • Gigabit Ethernet
    • SONET OC-48 / SDH STM-16
    • SONET OC-12 / SDH STM-4
    • SONET OC-3 / SDH STM-1
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Connector
    FSB4548L12 2.5 120 Tx1490/Rx1550 DFB + PIN -5 ~ 70 Yes LC
    FSB4548L12I 2.5 120 Tx1490/Rx1550 DFB + PIN -40 ~ 85 Yes LC
    FSB5448L12 2.5 120 Tx1490/Rx1550 DFB + PIN -5 ~ 70 Yes LC
    FSB5448L12I 2.5 120 Tx1490/Rx1550 DFB + PIN -40 ~ 85 Yes LC
    FSB4548S12 2.5 120 Tx1550/Rx1490 DFB + PIN -5 ~ 70 Yes SC
    FSB4548S12I 2.5 120 Tx1550/Rx1490 DFB + PIN -40 ~ 85 Yes SC
    FSB5448S12 2.5 120 Tx1490/Rx1550 DFB + PIN -5 ~ 70 Yes SC
    FSB5448S12I 2.5 120 Tx1490/Rx1550 DFB + PIN -40 ~ 85 Yes SC
    Notes:
