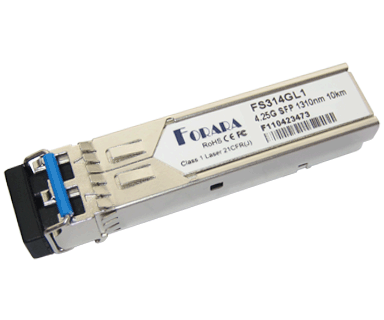

  • 4.25G SFP 1310nm 10km SMF (FS314GL1)

    • 4.25G SFP 1310nm 10km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP footprint
    • Uncooled 1310nm DFB transmitter and PIN photo-detector
    • Data rate up to 4.25Gbps
    • Transmission distance of 10km over SMF
    • Low power dissipation
    • Single +3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Support digital diagnostic monitoring functions
    • Compliant with MSA SFP Specification
    • Compliant with SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): -5 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • Tri-Rate 4.25 / 2.125 / 1.063 Gbps Fiber Channel
    • 1.25 Gigabit Ethernet
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FS314GL1 4.25 10 1310 DFB + PIN -5 ~ 70 Yes SMF, RoHS-6
    FS314GL1E 4.25 10 1310 DFB + PIN -10 ~ 85 Yes SMF, RoHS-6
    FS314GL1I 4.25 10 1310 DFB + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
