40G QSFP+ Active Direct Attach Copper Cable 5m

Products

Quick Download

Home > Products > QSFP28 / QSFP+ > 40G QSFP+ Copper Cable > FQCC40G05A

40G QSFP+ Direct Attach Copper Cable 5m, Active (FQCC40G05A)

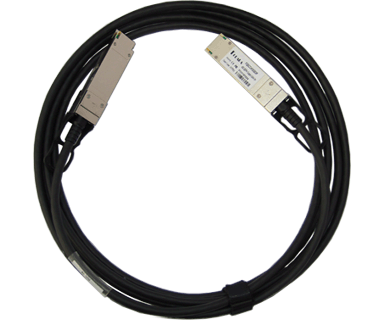

40G QSFP+ Direct Attach Copper Cable 5m, Active

View enlarged image

SUBMIT PRODUCT INQUIRY

Features
• Hot pluggable QSFP+ form factor
• Full-duplex 4 channels copper cable
• Data rate up to 41.2 Gbps (up to 10.3125 Gbps per channel)
• Copper link length up to 10m and 15m respectively on passive and active
• 30 AWG to 24 AWG cable sizes available
• AC coupled inputs and outputs
• 100 Ohm differential impedance
• Low power consumption
• Single 3.3V power supply
• Metal enclosure for low EMI
• Compliant with SFF-8436 (QSFP+)
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature Range:
Commercial temperature range(COM): 0 to 70°C

Applications
• 40G / 10G Ethernet
• Infiniband QDR, DDR and SDR
• 8x / 4x /2x Fiber Channel
• Other Optical Links

Product Details

Part Number	Data Rate (Gbps)	Reach (m)	Source	Type	Case Temp. (°C)	AWG	Others
FQCC40G05A	40	5	Copper	Active	0 ~ 70	30	RoHS-6

Notes:
1. 30 AWG to 24 AWG cable sizes maybe available upon request.
2. Other customized lengths maybe available upon request.
3. Other customized cable color maybe available upon request.
4. For further information, please contact us by email via sales@forara.com.

40G QSFP+ Direct Attach Copper Cable 5m, Active (FQCC40G05A)
