Features

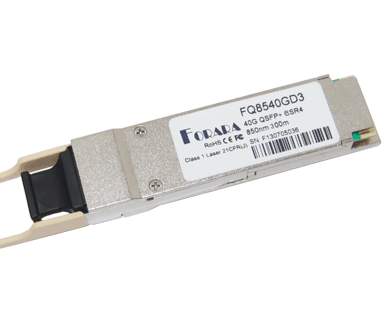

• Hot pluggable QSFP+ form factor
• Four independent full-duplex channels
• Supports 44.8 Gbps aggregate bit rates (up to 11.2 Gbps per channel)
• Transmission distance of 300m and 400m respectively on OM3 and OM4
• Uncooled 4x10Gbps 850nm VCSEL transmitter and PIN photo-detector
• Power Consumption < 1.5W
• Single 3.3V power supply
• XLPPI electrical interface
• Single MPO-12 receptacle
• Built-in digital diagnostic functions
• Compliant with 40G Ethernet IEEE802.3ba
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature Range:
Commercial temperature range(COM): 0 to 70°C
Applications
• 40GBASE-SR4 40G Ethernet
• Infiniband QDR, DDR and SDR
• Breakout to 10GBASE-SR Ethernet
• Other Optical Links
