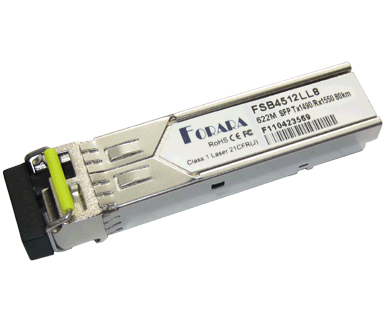

  • 622M BIDI SFP 80km SMF (FSBXX12XL8)

    • 622M BIDI SFP 80km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP footprint
      A type: 1490nm DFB TX / 1550nm PIN RX
      B type: 1550nm DFB TX / 1490nm PIN RX
    • Data rate up to 622Mbps
    • Transmission distance of 80km over SMF
    • Simplex LC or SC optical receptacle
    • Low power dissipation
    • Single +3.3V power supply
    • Metal enclosure for lower EMI
    • Support digital diagnostic monitoring functions
    • Compliant with MSA SFP Specification
    • Compliant with SFF-8472
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): -5 to 70°C
      Extended temperature range (EXT): -10 to 85°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • SONET OC-12 / SDH STM-4
    • SONET OC-3 / SDH STM-1
    • Fast Ethernet Links
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Mbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Connector
    FSB4512LL8 622 80 Tx1490/Rx1550 DFB + PIN -5 ~ 70 Yes LC
    FSB4512LL8I 622 80 Tx1490/Rx1550 DFB + PIN -40 ~ 85 Yes LC
    FSB5412LL8 622 80 Tx1550/Rx1490 DFB + PIN -5 ~ 70 Yes LC
    FSB5412LL8I 622 80 Tx1550/Rx1490 DFB + PIN -40 ~ 85 Yes LC
    FSB4512SL8 622 80 Tx1490/Rx1550 DFB + PIN -5 ~ 70 Yes SC
    FSB4512SL8I 622 80 Tx1490/Rx1550 DFB + PIN -40 ~ 85 Yes SC
    FSB5412SL8 622 80 Tx1550/Rx1490 DFB + PIN -5 ~ 70 Yes SC
    FSB5412SL8I 622 80 Tx1550/Rx1490 DFB + PIN -40 ~ 85 Yes SC
    Notes:
    For further information, please contact us by email via sales@forara.com.
