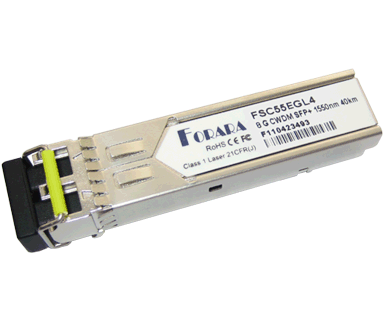

8G CWDM SFP+ ER 1470-1610nm 40km SMF (FSCXXEGL4)
- Features
• Hot-pluggable SFP+ footprint
• Uncooled CWDM DFB transmitter and PIN photo-detector
• 8 wavelengths from 1470nm to 1610nm with step 20nm
• Up to 8.5Gbps bi-directional data links
• Transmission distance of 40km over 9/125um SMF
• Power consumption < 1.5W
• Single 3.3V power supply
• Metal enclosure for lower EMI
• Duplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with SFP+ MSA specification SFF-8431
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 1.0625 / 2.125 / 4.25 / 8.5 Gbps Fiber Channel
• 1000BASE-EX Ethernet
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FSCXXEGL4 |
8.5 |
40 |
1470 ~ 1610 |
EML + PIN |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
| FSCXXEGL4E |
8.5 |
40 |
1470 ~ 1610 |
EML + PIN |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FSCXXEGL4I |
8.5 |
40 |
1470 ~ 1610 |
EML + PIN |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX=27, 29, 31...61, which 27=1470nm, 29=1290nm, 31=1310nm...61=1610nm
2. Please contact with Forara for specific wavelength availability.
