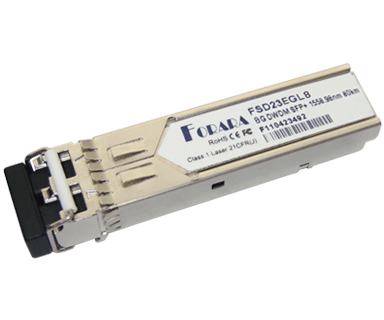

8G DWDM SFP+ ZR 80km SMF (FSDXXEGL8)
- Features
• Hot-pluggable SFP+ footprint
• Temperature-stabilized DWDM EML transmitter and APD photo-detector
• 100GHz ITU Grid, C-Band
• Up to 8.5Gbps bi-directional data links
• Transmission distance of 80km over 9/125um SMF
• Power consumption < 1.5W
• Single 3.3V power supply
• Metal enclosure for lower EMI
• Duplex LC receptacle
• Built-in Digital Diagnostic Monitoring functions
• Compliant with SFP+ MSA specification SFF-8431
• Compliant with RoHS-6 (lead-free)
• Operating Case Temperature:
Commercial temperature range(COM): 0 to 70°C
Industrial temperature range(IND): -40 to 85°C
Applications
• 1.0625 / 2.125 / 4.25 / 8.5 Gbps Fiber Channel
• 1000BASE-ZX Ethernet
• Other Optical Links
Product Details
Part Number
 |
Data Rate
(Gbps) |
Reach
(km) |
Wavelength
(nm) |
Source |
Case Temp.
(°C) |
DDM |
Others |
| FSDXXEGL8 |
8.5 |
80 |
C-Band |
EML + APD |
0 ~ 70 |
Yes |
SMF, RoHS-6 |
| FSDXXEGL8E |
8.5 |
80 |
C-Band |
EML + APD |
-10 ~ 85 |
Yes |
SMF, RoHS-6 |
| FSDXXEGL8I |
8.5 |
80 |
C-Band |
EML + APD |
-40 ~ 85 |
Yes |
SMF, RoHS-6 |
Notes:
1. XX is 100GHz ITU Channel ID, XX=17, 18, 19...61, which 17=1563.86nm, 18=1563.05nm, 19=1562.23nm ... 61=1528.77nm
2. Please contact with Forara for specific wavelength availability.
