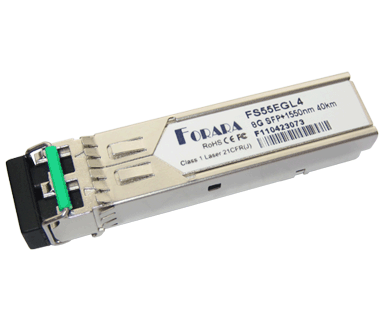

  • 8G SFP+ ER 40km SMF (FS55EGL4)

    • 8G SFP+ ER 40km SMF
    View enlarged image
    SUBMIT PRODUCT INQUIRY
  • Features
    • Hot-pluggable SFP+ footprint
    • Temperature-stabilized 1550nm EML transmitter and PIN photo-detector
    • Up to 8.5Gbps bi-directional data links
    • Transmission distance of 40km over 9/125um SMF
    • Power consumption < 1.5W
    • Single 3.3V power supply
    • Metal enclosure for lower EMI
    • Duplex LC receptacle
    • Built-in Digital Diagnostic Monitoring functions
    • Compliant with SFP+ MSA specification SFF-8431
    • Compliant with RoHS-6 (lead-free)
    • Operating Case Temperature:
      Commercial temperature range(COM): 0 to 70°C
      Industrial temperature range(IND): -40 to 85°C

    Applications
    • 1.0625 / 2.125 / 4.25 / 8.5 Gbps Fiber Channel
    • 1000BASE-EX Ethernet
    • Other Optical Links

    • Product Details
    Part Number
    Download Datasheet    		 Data Rate
    (Gbps)    		 Reach
    (km)    		 Wavelength
    (nm)    		 Source Case Temp.
    (°C)    		 DDM Others
    FS55EGL4 8.5 40 1550 EML + PIN 0 ~ 70 Yes SMF, RoHS-6
    FS55EGL4E 8.5 40 1550 EML + PIN -10 ~ 85 Yes SMF, RoHS-6
    FS55EGL4I 8.5 40 1550 EML + PIN -40 ~ 85 Yes SMF, RoHS-6
    Notes:
    For further information, please contact us by email via sales@forara.com.
